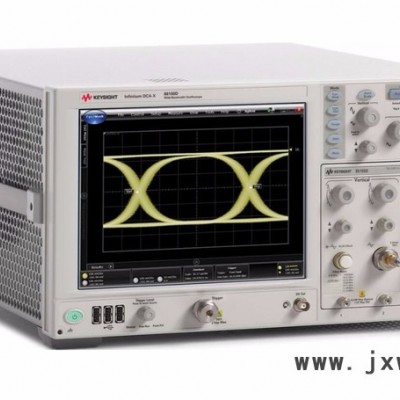

| 品牌 | Keysight |
|---|---|
| 型號 | 86100D |
主要特性和功能
90 GHz 帶寬
定制主機以進行光、電和 TDR/S 參數分析
100 fs RMS 超低抖動和低至 250 μV 確保執行快速、精確和一致的抖動測量
獲得超過 50 種內置標準模板和自動模板裕量分析
輕松地同時測量多個信號；同時分析和采集多達 16 個信號
主機可升級并且向后兼容，為您的投資提供充分保護
| 帶寬 | 無 |
| 顯示屏尺寸 | 10.4 英寸 |
| 本底噪聲 | 無 |
| 支持的數據速率 | 無 |
| 輸入類型 | 無 |
| 模塊類型 | 光 電 TDR |
| 應用 | 用戶定義應用軟件 光 TX 100Gbase-CR10 (IEEE 802.3ba) 100Gbase-CR4 (IEEE 802.3bj) 100Gbase-KR4 10Gbase-KR (IEEE 802.3ap) 40Gbase-CR4 40Gbase-KR4 (IEEE 802.3bj) CAUI OIF CEI 3.1 SFF8431 XLAUI nPPI (IEEE 802.3ba) |
| 操作系統 | Windows 7 |
| 等效時間 | 是 |
Trigger and Timebase
86100D-ETREnhanced trigger, 13 GHz BW, pattern and module trigger
86100D-STRStandard trigger 3.2 GHz BW (default option)
86100D-PTBInternal Precision Timebase
Fixed Node-Locked SW Licenses
86100D-SIMInfiniiSim-DCA 波形轉換工具套件
86100D-300先進幅度分析/RIN/Q 因數
86100D-20286100C-202 增強型阻抗和 S 參數軟件
86100D-201先進波形分析軟件
86100D-200增強型抖動分析軟件
86100D-062MATLAB - Standard Digital Analysis Package, Fixed Perpetual License
86100D-061MATLAB - Basic Digital Analysis Package, Fixed Perpetual License
86100D-500生產力套裝軟件
86100D-401Advanced Eye Analysis Software, Fixed Perpetual License
86100D-9FP86100D-9FP 用于 86100D DCA-X 示波器的 PAM-N 分析軟件
86100D-BFPAutomatic Fixture Removal in TDR Mode, Fixed Perpetual License
86100D-TFPIEEE TDECQ analysis, fixed perpetual license
Storage
86100D-092Internal hard drive (default option)
86100D-090Removable hard drive
Calibration documentation
86100D-UK6Commercial calibration certificate with test data
Peripheral Connection
86100D-GPNNo GPIB Card Interface
86100D-GPIGPIB Card Interface - Installed
Accessories
86100D-AXERack mount kit with handles
86100D-AX4Rack mount kit without handles
86100D-AFPModule slot filler panel
Transportable SW Licenses
86100DT-SIMInfiniiSim-DCA Waveform Transformation SW, Transportable License
86100DT-500Productivity Package, Transportable License
86100DT-401Advanced Eye Analysis, Transportable License
86100DT-300Advanced Amplitude Analysis/RIN/Q-Factor , Transportable License
86100DT-202Enhanced Impedance and S-parameter Software, Transportable License
86100DT-201Advanced Waveform Analysis, Transportable License
86100DT-200Enhanced Jitter Analysis, Transportable License
86100DT-9TPPAM-N Analysis SW, Transportable Perpetual License
86100DT-BTPAutomatic Fixture Removal in TDR Mode, Transportable License
86100DT-ETPFlex Eye - Independent Channel Acquisition and Control, Transportable License
86100DT-TTPIEEE TDECQ analysis, transportable perpetual license
