| 材質 | 鋼材 |
|---|---|
| 產地 | 廣州 |
| 電動機功率 | 2.2Kw |
| 合模力 | 15Ton |
| 理論注射容量 | 34cm2 |
| 螺桿直徑 | 26mm |
| 螺桿轉速 | 0-150R/Min |
| 售后服務 | 保修一年 |
| 外形尺寸 | 1.25Mx0.9Mx2.15M |
| 新舊程度 | 全新 |
| 顏色 | 綠色 |

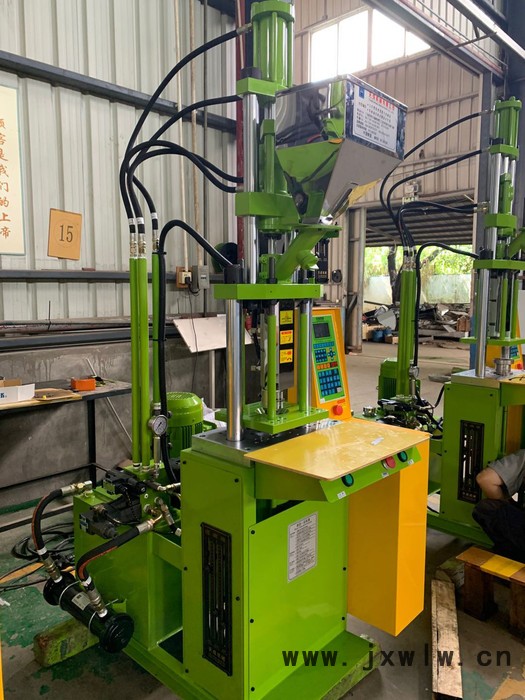

| 種類 | 立式注塑機 |
| 重量 | 600kg |
| 品牌 | 天成 |
| 型號 | TC-150 |
| 射膠量 | 28 |
| 射膠壓力 | 1417kg/Cm2 |
| 開模行程 | 200mm |
| 型號MODEL | UNIT | TC-150 | ||
| 射出系統 INJECTION UNIT | 螺桿直徑Screw Diameter | MM | 22 | 26 |
| 射出壓力Maximum Injection Pressure | Kg/Cm2 | 1417 | 1015 | |
| 理論射出容積Theoretical Shot Volume | Cm3 | 34 | 47 | |
| 射出重量(PS)Maximum Shot Weight(PS) | G/oz | 30/1.2 | 42/1.5 | |
| 射出率 Injection Rate | Cm3/sec | 28 | 39 | |
| 螺桿轉速 Screw Speed | R/Min | 0-150 | ||
| 螺桿行程Injection Rate | MM | 90 | ||
| 噴咀行程N(yùn)ozzle Retraction Stroke | MM | / | ||
| 鎖模系統 CLAMPING UNIT | 鎖模力Clamping Force | Ton | 15 | |
| 開模力Opening Force | Ton | 7 | ||
| 模板尺寸 Platen Size | MM | 460*250 | ||
| 模柱間距 space Between Tie-Bere | MM | 280 | ||
| **小模厚Minimum Mold Thickness | MM | 30 | ||
| 開模行程O(píng)pening Stroke | MM | 200 | ||
| **大開模距離 Open Daylight | MM | 230 | ||
| **大模具尺寸 Maximum die size | MM | 250*180 | ||
| 頂出力 Ejetor Force | Ton | 1.3 | ||
| 頂出行程 Ejetor Stoke | MM | 28 | ||
| 油電力系統 ELE.UNIT | **大液壓壓力Max.Hydaulic presssure | Kg/cm2 | 140 | |
| 泵浦吐出量Pump Output | L/min | 22 | ||
| 油箱容量 Oil Tank Capatity | L | 82 | ||
| 冷卻水用量Cooling Waer Consumption | I/h | 400-600 | ||
| 電機功率Electric Power | Kw | 2.2 | ||
| 電熱容量Berrel Heation Power | kw | 1.8 | ||
| 總用電量Total wattage | Kw | 4 | ||
| 其他 OTHERS | 機器尺寸Machine dimension(Approx.) | M | 1.25x0.9x2.15 | |
| 機器重量Machine Weight(Approx.) | Kg | 600 | ||
| | ||||
