| 建議零售價 | 6800.00 |
|---|---|
| 上市時間 | 2013-9 |
| 貨源類別 | 訂貨 |
| 類型 | 19″4U上架工作站 |
| 設備類型 | 工控電腦 |
| 外形尺寸 | 459.8(D)×442(W)×179(H)（mm） |
| OEM | 可OEM |
| 是否支持代理加盟 | 支持 |
| 最快出貨時間 | 1-3天 |
| 售后類型 | 店鋪三包 |
| 質保 | 二（年） |
| 發票 | 提供** |
| 材質 | 鋁合金面板 |
| 產品類型 | 工控機箱 |
| 顯示位數 | 可選 |
| 顏色 | 黑色 |
| 加印LOGO | 可以 |
| 新奇特 | 外觀新穎 |
| 適配電池 | 標配 |
| 品牌 | 華南智能 |
| 型號 | HNICP-410 |
| 加工定制 | 是 |
| 屬性 | 屬性值 |
| 是否帶語音功能 | 否 |
| 是否帶電池 | 是 |
產品特性：

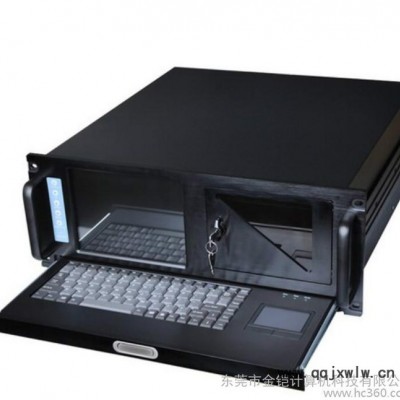

·ICP-410是一款8.4″LCD 工業級上架式工作站
整機配置8.4″高亮度LCD 液晶顯示屏，集成**945全長板，160G 硬盤，775雙核CPU，良好的I/O擴展性
LCD 顯示屏亮度調節、并具有待機節能模式
·先進的結構設計，系統安裝靈活方便。安裝方式兼容面板型、上架式
機箱上裝有散熱風扇，散熱性能良好，產品結構緊湊堅固，減振、抗沖擊性能強，工作可靠
ICP-410 是一款高性價比的工作站，可廣泛應用于電力、制造業、環保等作通訊、控制終端。
產品規格
工作溫度: -10 ℃～50 ℃
儲存溫度: -20℃～60℃
工作濕度: 5%-95% 非冷凝
振動: 5-17Hz，0.1寸雙峰位移；17-640Hz，1.56峰一峰加速
沖擊: 10G峰一峰加速度，在X，Y，Z軸方向可持續15MS
EMC: CE/FCC A級
定購型號
1：ICP-410 8.4"LCD/PSII300W電源/6114P4底板/160G硬盤/1GB內存/945 775雙核CPU
2：ICP-410T 8.4"LCD/PSII300W電源/6114P4底板/160G硬盤/1GB內存/945 775雙核CPU/電阻觸摸屏
Product characteristics:
ICP-410 is a 8.4 "LCD industrial grade tigh2u workstation
Machine configuration 8.4 "high brightness LCD liquid crystal display, integrated the latest 945 length of plate and 160 Gigabyte hard drive, dual core CPU 775, good I / O expansion
LCD display brightness adjustment, and has the standby energy saving mode
- advanced structural design, system installation, flexible and convenient. Installation method compatible panel type, on the shelf
The chassis is equipped with cooling fan, good thermal performance, compact structure, strong product structure, shock absorption, impact resistance, reliable work.
ICP-410 is a high performance price ratio of workstations, can be widely used in electric power, manufacturing, environmental protection and other communication, control terminal.
Product specifications
Structure: 19 "4U on the workstation
Panel: 10mm thick high strength aluminum alloy plate, the hard anodic oxidation by wire drawing
Display: 8.4 "high brightness LCD LCD screen
Best resolution: 800 x 600 75HZ
Operation mode: take the stealth pull type 88 keyboard, and the touch board is composed of convenient user directly input data.
Motherboard: support full length, half - long card, each manufacturer 17*17CM, PC motherboard.
Driver: 2 "5.25 CD-ROM, 2 3.5" hard disk, such as the need to increase the hard disk, can increase the position.
PSII power supply: 300W with PFC function of industrial switching power supply
Color: Industrial black (optional)
Size: 459.8MM (D) x 442MM (W) x 179MM (H)
Environmental Science
Working temperature: -10 50
Storage temperature: -20 60
Working humidity: 5%-95% non condensing
Vibration: 5-17Hz, 0.1 inch Shuangfeng displacement; 17-640Hz, 1.56 peaks and one peak acceleration
Impact: 10G peak a peak acceleration, in X, Y, Z axis direction of sustainable 15MS
CE/FCC EMC: a
Order model
1:ICP-410 8.4 "LCD/PSII300W /6114P4 /160G /1GB hard disk memory /945 775 core CPU
2:ICP-410T 8.4 "LCD/PSII300W /6114P4 /160G hard drive /1GB /945 775 core dual core CPU/ resistive touch screen
