| 材質(zhì) | 不銹鋼 |
|---|---|
| 規(guī)格 | ZL200 |
| 類型 | 板式換熱器 |
| 用途 | 食品,熱交換,換熱器,化工 |
| 傳熱方式 | 間壁式 |
| 分類 | 板式換熱器 |
| 包裝類型 | 紙箱,套裝,單只裝,對裝,木箱,泡沫 |
| 品牌 | 駿益 |
| 加工定制 | 是 |
掌柜微信/手機號：17501518415
釬焊板式換熱器外觀參數(shù)
| 型號 | 寬 | 高 | 孔間距1 | 孔間距2 | 厚度 | 重量 | 最大流量m³/H | 設計壓力 | 設計溫度℃ |
| ZL14 | 76 | 206 | 42 | 172 | 9+2.3N | 0.6+0.056N | 8 | 1.0/3.0/4.5 | -196-255 |
| ZL18 | 80 | 190 | 40 | 154 | 9+2.3N | 0.7+0.06N | 8 | 1.0/3.0 | -196-255 |
| ZL20A | 95 | 325 | 40 | 269 | 9+1.58N | 0.9+0.088N | 8 | 1.0/3.0/4.5 | -196-255 |
| ZL20B | 78 | 318 | 42 | 282 | 9+2.3N | 0.9+0.088N | 8 | 1.0/3.0/4.5 | -196-255 |
| ZL26 | 111 | 310 | 50 | 250 | 9+2.36N | 1.3+0.12N | 18 | 1.0/3.0/4.5 | -196-255 |
| ZL30 | 124 | 304 | 70 | 250 | 13+2.4N | 2.2+0.146N | 18 | 1.0/3.0/4.5 | -196-255 |
| ZL52A | 111 | 525 | 50 | 466 | 10+2.35N | 1.9+0.215N | 18 | 1.0/3.0/4.5 | -196-255 |
| ZL52B | 111 | 525 | 50 | 466 | 10+2.35N | 1.9+0.215N | 18 | 1.0/3.0/4.5 | -196-255 |
| ZL62A | 119 | 526 | 63 | 470 | 10+2.35N | 2.4+0.225N | 18 | 1.0/3.0/4.5 | -196-255 |
| ZL62B | 119 | 526 | 63 | 470 | 10+2.35N | 2.4+0.225N | 18 | 1.0/3.0/4.5 | -196-255 |
| ZL95A | 191 | 616 | 92 | 519 | 11+2.72N | 6+0.415N | 42 | 1.0/3.0/4.5 | -196-255 |
| ZL95B | 191 | 616 | 92 | 519 | 11+2.72N | 6+0.415N | 42 | 1.0/3.0/4.5 | -196-255 |
| ZL120A | 246 | 528 | 174 | 465 | 10+2.36N | 7+0.472N | 42 | 1.0/3.0/4.5 | -196-255 |
| ZL120B | 246 | 528 | 174 | 465 | 10+2.36N | 7+0.472N | 42 | 1.0/3.0/4.5 | -196-255 |

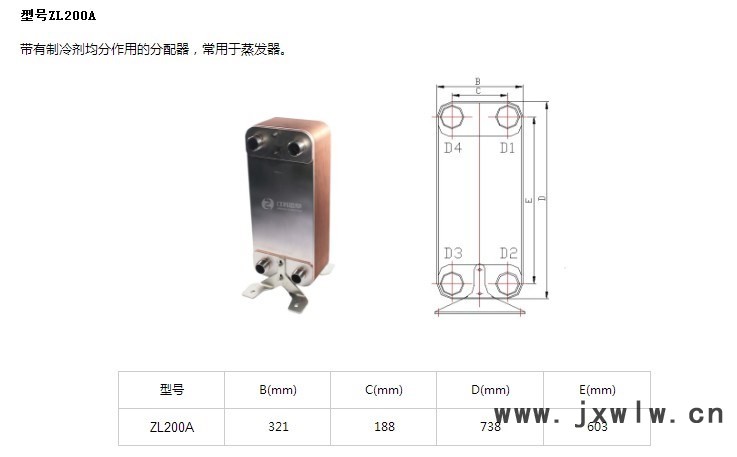

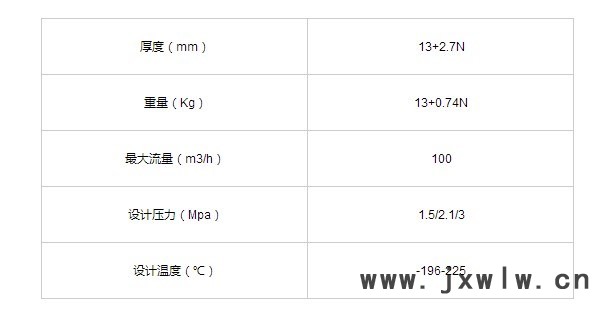

| ZL200A | 321 | 738 | 188 | 603 | 13+2.7N | 13+0.74N | 100 | 1.0/3.0/4.5 | -196-255 |
| JY01 | 390 | 1318 | 204 | 1132 | 13+2.75N | 30+1.8N | 300 | 1.0/3.0/4.5 | -196-255 |
