| 加工尺寸范圍 | 3000 |
|---|---|
| 主軸轉速范圍 | 18-600 |
| 產地 | 山東 |
| 動力類型 | 電動 |
| 加工精度 | 高精度 |
| 類別 | 臥式 |
| 主電機功率 | 15kw |
| 執行質量標準 | 國標 |
| 品牌 | 龍澤數控 |

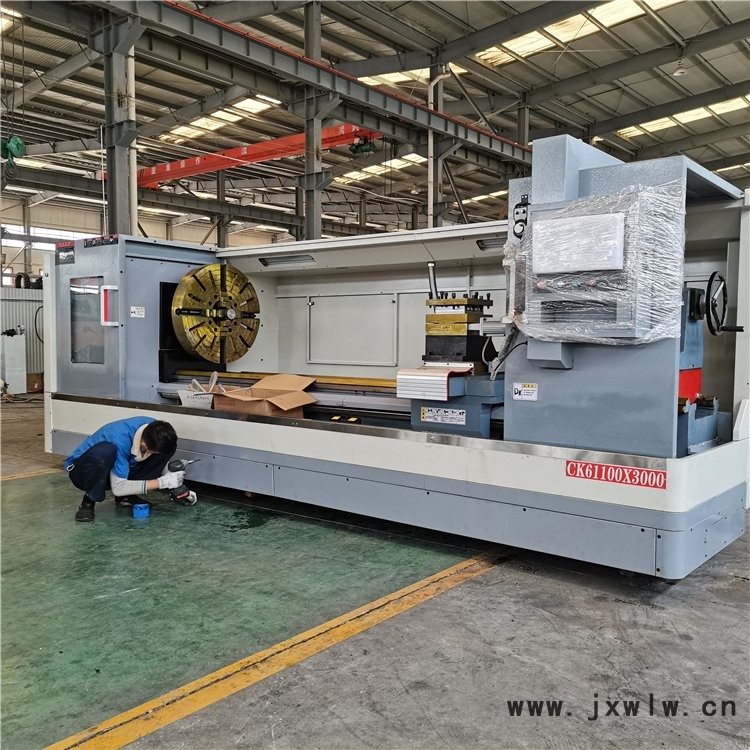

| 型號 | CK61100 |
| 加工定制 | 是 |
| 質量認證 | CCC |
| 主要技術參數 | SPECIFICATIONS | Units | CK61100F | CK61100F |
| 手動換擋Manual | 液壓換擋HYD. | |||
| 床身上回轉直徑 | Swing over bed | mm | 1000 | |
| 橫滑板上回轉直徑 | Swing over cross slide | mm | 680 | |
| 工件長度 | Distance between centers | mm | 1000/1500/2000/3000/ 4000/5000/6000 | |
| 床身導軌寬度 | Guideway width | mm | 600 | |
| 床身承重范圍 | Max. load capacity | T | 4 | |
| 主軸孔徑范圍 | Spindle bore | mm | 104 | |
| 主軸孔徑錐度 | Spindle bore taper | - | Metric φ120/MT5 | |
| 主軸鼻端型號 | Spindle nose type | - | C11 | |
| 主軸轉速級數 | Spindle speed steps | - | 3檔變頻 VF. 3 steps | 4檔液壓 HYD. 4 steps |
| 主軸轉速范圍 | Spindle speed range | rpm | 10-800 | 17-800 |
| 卡盤規格 | Chuck | mm | φ400手動三爪/φ400 3-jaw manual | |

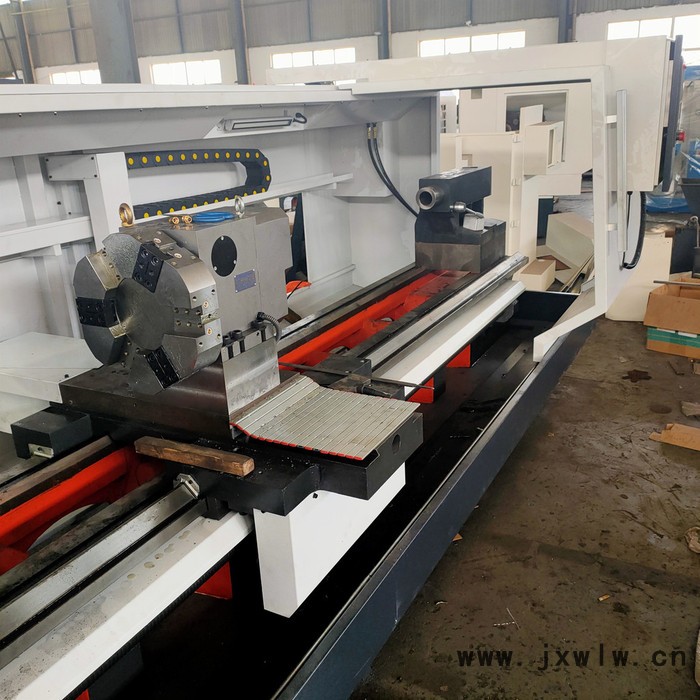

| 刀架類型 | Turret/tool post | - | 4工位電動刀架 Eletric 4 position | |
| 刀具尺寸 | Tool size | mm | 40×40 | |
| X軸行程 | X axis travel | mm | 520 | |
| Z軸行程 | Z axis travel | mm | 850/1350/1850/2850/ 3850/4850/5850 | |
| X軸快速進給速度 | X axis rapid traverse | mm/min | 4000 | |
| Z軸快速進給速度 | Z axis rapid traverse | mm/min | 6000 | |
| 尾座套筒直徑 | Tailstock quill diameter | mm | φ120 | |
| 尾座套筒錐度 | Tailstock quill taper | - | MT6 | |
| 尾座套筒行程 | Tailstock quill travel | mm | 250 | |
| 主軸電機 | Main spindle motor | kw | 15 | |
| 冷卻泵電機 | Coolant pump motor | kw | 0.125 | |
| 機床重量 Machine weight | Weight for 1000 | kg | 5000 | |
| Weight for 1500 | kg | 5400 | ||
| Weight for 2000 | kg | 5800 | ||
| Weight for 3000 | kg | 6600 | ||
| Weight for 4000 | kg | 7400 | ||
| Weight for 5000 | kg | 8200 | ||
| Weight for 6000 | kg | 9000 | ||
| 外形尺寸 Overall dimension | Dimension for 1000 | mm | 3500x2000 x 2100 | |
| Dimension for 1500 | mm | 4000x2000 x 2100 | ||
| Dimension for 2000 | mm | 4500x2000 x 2100 | ||
| Dimension for 3000 | mm | 5500x2000 x 2100 | ||
| Dimension for 4000 | mm | 6500x2000 x 2100 | ||
| Dimension for 5000 | mm | 7500x2000 x 2100 | ||
| Dimension for 6000 | mm | 8500x2000 x 2100 | ||
