| 產地 | 浙江 |
|---|---|
| 產品別名 | 激光焊接機 |
| 作用對象 | 金屬 |
| 作用原理 | 脈沖 |
| 品牌 | 欣睿激光 |
| 型號 | XR-MW400 |
特點: Feature:
● 采用英國進口陶瓷聚光腔體，耐腐蝕、耐高溫、壽命（8-10）年，氙燈壽命800萬次以上。
imported ceramic condenser chamber, corrosion resistance, high temperature resistance, life expectancy (8-10), xenon lamp life 8 million times.
● 生產效率高,焊接速度快,可實現流水線自動化批量生產。
The high production efficiency, high welding speed, can realize the automation of production line
● 激光頭可旋轉360度，光路部份可轉動360度，上下電動升降前后推動適合大、中、小型模具的修補。
The laser head can rotate 360 degrees, and the light path part can rotate 360 degrees, and the upper and lower electric lifting drive is suitable for the repair of large, middle and small mold.
● 工作臺可配定制夾具。
Workbench can be equipped with custom fixture.
適用材料: Applications

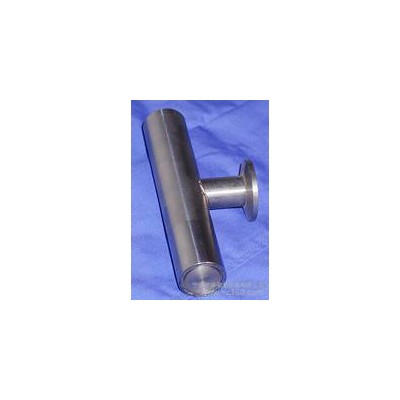

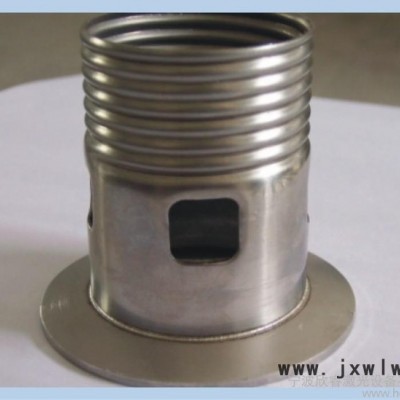

適用于水壺、真空杯、不銹鋼碗、門把手、電器配件、濾清器、油嘴、不銹鋼制品、高爾夫球頭、鋅合金工藝品等焊接；可焊接圖形有：點、直線、圓、方形或由AUTOCAD軟件繪制的任意圖形，可焊接立體軌跡。
It is applicable for welding in the kettle, vacuum cup, stainless steel bowl, the handle of the door, electric appliance fittings, filter, glib, stainless steel products, golf head, zinc alloy products such as; welding graphics: point, line, circle, square or drawn by AutoCAD software arbitrary graphics, welding three-dimensional trajectory.
技術參數technical parameter
|
| XR-AW200 | XR-AW300 | XR-AW400 | XR-AW500 | XR-AW600 | ||||
| 最大激光功率 Max. laser output power | 200W | 300W | 400W | 500W | 600W | ||||
| 激光波長 Laser wavelength | 1064nm | ||||||||
| 激光工作性質 Laser working medium | ND:YAG | ||||||||
| 脈沖頻率 Pulse frequency | ≤100KHz | ||||||||
| 脈沖寬度 Pulse width | ≤20ms | ||||||||
| 瞄準定位方式 Positioning | 顯微鏡、CCD、紅光(選配) Red light or CCD | ||||||||
| 工作臺行程 Worktable moving range | 200x200mm至1200x1200mm(可選) 200×200mm to 1200×1200mm(optional) | ||||||||
| 整機耗電功率 Power consumption | 8KW | 10KW | 12KW | 15KW | 18KW | ||||
| 電力需求Power supply
| AC220V±10%/50Hz | 三相AC380V /50Hz Three phase | 三相AC380V /50Hz Three phase | ||||||
| 冷卻系統 Cooling system | 水冷water cooling | ||||||||
