| 產地 | 浙江 |
|---|---|
| 售后服務 | 終身保固 |
| 經營模式 | 自產自銷 |
| 品牌 | 欣睿激光 |

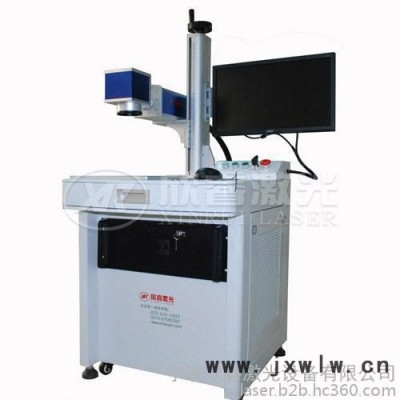

| 型號 | XR-FLM30 |
● 激光通過光纖傳輸在光纖波導里受激振蕩加大、損耗小、穩定性好;
Laser through optical fiber transmission in optical fiber waveguide stimulated oscillation increase, loss of small, good stability;
● 完美的軟硬件配合與超高速的進口振鏡，有效提高產能，打標速度可達10000mm/s;
The software and hardware perfect cooperation and ultra high speed import galvanometer, effectively improve the production capacity, marking speed of up to 10000mm/s;
● 整機體積更小巧，可做手持式和配置飛行在線打標;
The volume can be more compact, hand-held and configuration of flight line marking;
● 全風冷光纖激光器使用壽命長、10萬小時無耗材 、低維護與運行成本低。
Full air cooling fiber laser with long service life, 100 thousand hours without supplies, low maintenance and operation cost.

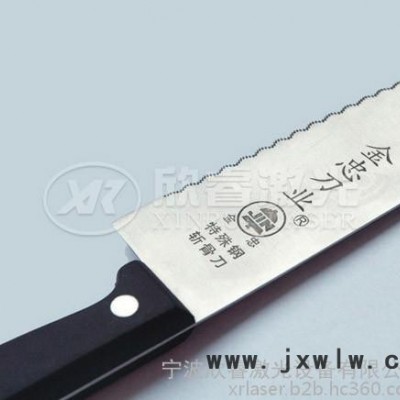

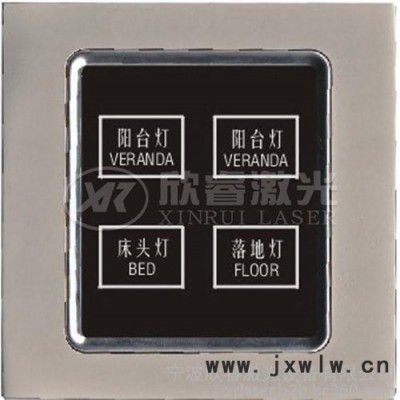

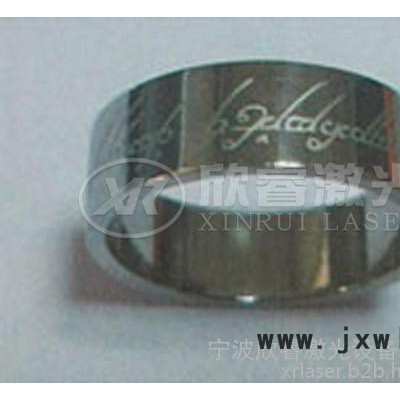

適用材料 Application
應用于對深度、光滑度、精細度要求較高的領域，如鐘表、模具行業、鍵盤、集成電路（IC）、汽車、高檔按鍵等。
It is widely used in fields that have high requirement on depth, smoothness and fine, such as clock and watch, mould, bitmap marker, etc.
技術參數technical parameter
|
| XR-FLM10 | XR-FLM20 | XR-FLM30 | XR-FLM50 | XR-FLM100 | |||||||
| 最大激光功率 Max. laser power | 10W | 20W | 30W | 50W | 100W | |||||||
| 激光波長 Laser wavelength | 1064nm | |||||||||||
| 調Q頻率 Frequency | 20KHz—100KHz | |||||||||||
| 雕刻范圍 Engraving range | 100X100mm標配(50mm×50mm -300mm×300mm) | |||||||||||
| 光束質M? Laser beam quality | <2 | <3 | ＜4 | |||||||||
| 雕刻線速 Line speed | ≤10000mm/s | |||||||||||
| 最小線寬 Minimum line width | <0.012mm | <0.015mm | ＜0.018mm | |||||||||
| 雕刻深度 Marking depth | <0.2mm | <0.4mm | <0.6 mm | <1.0mm | ＜1.6mm | |||||||
| 重復精度Repeating precision | ±0.002mm | |||||||||||
| 整機功率 Power consumption | 400W | 500W | 700W | 1000W | 1800W | |||||||
| 電力需求 Power supply | AC220V/50Hz/5A | |||||||||||
| 冷卻系統 Cooling system | 風冷（Air cooling） | |||||||||||
