| 產地 | 廣東 |
|---|---|
| 打印方向 | 雙向打印 |
| 售后服務 | 終身保固 |
| 執行質量標準 | 國標 |
| 自動化程度 | 全自動 |
| 經營模式 | 自產自銷 |
| 適用工件 | 平面 |
| 品牌 | 遠贊 |
| 型號 | FL |
技術參數：Technical parameters:
| 產品型號Product Model | FL | FL-BX | FL-A | FL-H |
| 激光功率Laser Power | 20W,30W,50W | |||
| 激光波長Laser wave length | 1064nm | |||
| 打標方式Marking type | 靜止、飛行標刻、旋轉打標 | |||
| 打標范圍Marking range | 50mmX50mm~200mmX200mm(可選） | |||
| **小線寬Min beam | 0.01mm | |||
| 標刻速度Marking speed | 10000mm/s | |||
| 重復定位精度 | 0.002mm | |||
| 工作電壓Working voltage | AC220V+10%（50HZ） | |||
| 圖形格式Graphics formats | PLT、DXF、BMP、JPG | |||
| 整機功率Power | ≤1000W | |||
機型特點：
l 運用先進的光纖激光器研制而成的第三代激光打標機系統
l 采用脈沖光纖激光器結合高速掃描振鏡系統實現打標功能
l 紅光定位，調試，更換夾具更方便，快捷
l 光纖激光打標機電光轉換效率高（電光轉換效率可達 30%)
l 采用風冷方式冷卻, 整機體積小巧, 輸出光束質量好
l 脈沖重復頻率高,輸出功率穩定 ，單脈沖能量波動小于 1%，從而可實現高速激光標刻 ,還可控制光斑的大小 , 深度 , 形狀
l 可靠性高，超長的運行壽命，節能 ，可雕刻金屬材料和部分非金屬材料
Type characteristics
l It is the third generation of laser markingsystem which is manufactured by the most advanced laser technology in currentof the world.
l Using the fibre laser exports the laser beam,and useing the fastest scanning lens system in current world to achieve marking.
l Location by red light testing and changingholder will be easier
l Fibre laser marking machine with hightransition efficiency from electricity to light(the efficiency can reach30%).
l Using wind cooling, so volume of the machine issmall. The quality of laser beam is good(near to the limit of diffraction,exporting TEM 00 fundamental transverse mode, M2 near to 1,divergence angle oflaser beam is 0.3 mard)
l With high pulse repeatfrequency, power exportsteadily, energy surge of single pulse is lowwer than 1%, so it can achievehigh speed marking, and control the magnitude, depth and shape of faculawell
l With high reliability, long using life,saveenergy, can marking metal and some of nonmetal.
產品應用
可標刻金屬（含稀有金屬）及部分非金屬，如尼龍、透光按鍵、塑料、ABS、PVC、PES、鋼、鈦、銅等。
適用范圍包括：對深度、光滑度、粗細度要求較高的領域，如標牌制作、模具行業、位圖打標等，在 電子元器件、電工產品、IT產業、汽車配件、五金工具制品、精密器械、禮品飾品、醫療器械、高低壓電器等領域更為突出。
Product application
It can marking metal(including the raremetals)such as steel,titanium,copper and so on. And some of nonmetal such asnylon,light button,ABS,PVC, PES.
The range of application: The area with higher demand for depth,smoothness anddegree of thickness, such as clock industry,die industry, bitmap marking and soon. The other area such as electronic component, electrical products, IT industry,auto-parts, metal tools, accurate instrument,present and adornment,medical instrument, high or low voltage electric equipment and so on.

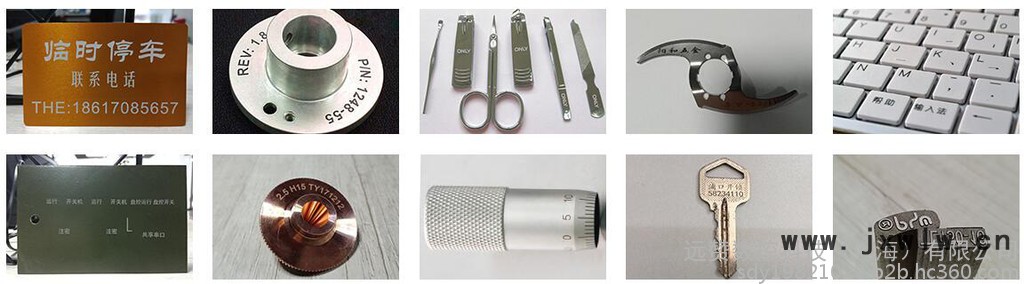

樣品Sample
