| 包裝類型 | 箱 |
|---|---|
| 產地 | 廈門 |
| 售后服務 | 售后無憂 |
| 自動化程度 | 全自動 |
| 經營模式 | 自產自銷 |
| 品牌 | 點盛 |
| 型號 | DS-LMM-20/50 |

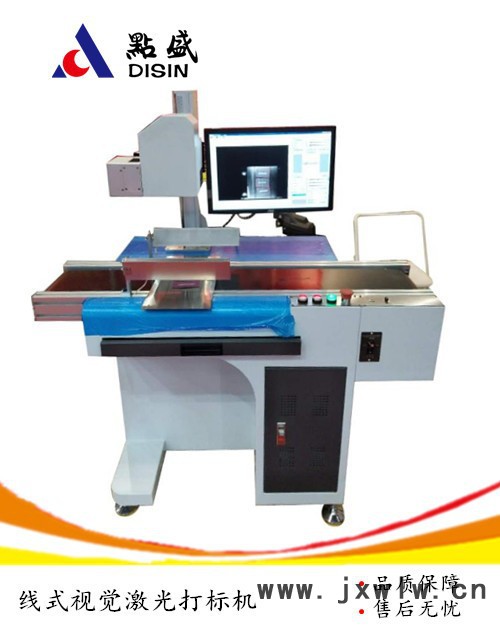

線式視覺激光達標機
型號：DS-LMM-20/50
類型：激光打標
建模后可在線式自動激光打標，工件隨意擺放，無需模具固定定位，降低人工成本和治具成本，提高打標效率。適用于各行業在線式激光打標需求，做到無人值守全自動打標。
功能特點：
1、可保存任意多產品模板，生產時直接調用即可；
2、打標軌跡采用CCD視覺自動捕捉，簡單、方便、高精度；
3、無須夾具，只要放平即可，產品可任意角度擺放；
4、可以與前后生產線直接對接，或者采用振動盤上料；
5、打標完畢后，可以自動檢測，對未打標工件可輸出報警剔廢信號；
6、光束質量好，適合于更加精細打標；
7、不需水冷卻，無易損件，無耗材，運行成本低；
8、流水線采用鋼結構焊接制造，運行穩定可靠，控制柜面板與工控機容為一體，美觀高檔。
9、適用范圍：各種材料的零部件上打印標記，如電子通訊產品、儀器儀表、精密零件、五金工具、生活用品、食品包裝等，標記內容可以是產品型號、生產日期、序列號、商標圖案、條形碼和二維碼等。
Type:laser marking
Aftermodeling, online automatic laser marking can be carried out, and workpiece canbe placed freely, without fixed positioning of the mould, reducing labor costand fixture cost, and improving marking efficiency. It is suitable for theonline laser marking requirements of various industries, and achieves automaticmarking without being on duty.
Functionalcharacteristics:
1, you cansave any product template and call it directly in production.
2. Themarking track is automatically captured by CCD vision, which is simple,convenient and high precision.
3, nofixture, as long as it can be flat, the product can be placed at any angle.
4. It canbe directly butted with the front and rear production lines or be fed byvibrating tray.
5. Afterthe marking is completed, it can automatically detect and output the alarm andreject signals for the non marking parts.
6, thebeam quality is good, suitable for more precise marking.
7, no needfor water cooling, no wearing parts, no consumables, and low running cost.
8, theproduction line is welded by steel structure. The operation is stable andreliable. The control panel and the industrial control computer are integrated,beautiful and high-grade.
9. Scopeof application: print marks on parts of various materials, such as electroniccommunication products, instruments, precision parts, hardware tools, dailynecessities, food packaging and so on. The marking content can be productmodel, production date, serial number, trademark pattern, bar code andtwo-dimensional code.
|
|
| |
|
| DS-LMM-20/DS-LMM-50 |
|
| 相機像素Camera pixel | 600萬像素6 million pixels | |
| 打標精度 Marking precision | 0.1mm | |
| 打標幅面Marking amplitude | 180mm×180mm | |
| 打標深度Marking depth | 0.01-0.3mm（視材料）。 | |
| 打標線寬Marking line width | 0.05-0.1mm。 | |
| 打標激光速度Marking laser speed | ≤7000mm/s。 | |
| 激光波長Laser wavelength | 1.064μm。 | |
| 焦距focal length | 160mm(160mm-185mm)。 | |
| 字符高度character height | 0.5～100mm。 | |
| 輸出方式Output mode | 脈沖激光，外置紅光指示器。 Pulsed laser, external red indicator | |
| 最大激光輸出功率Maximum laser output power | 20W/50W | |
| 標記內容Tagged content | 任意中英文、數字及圖形、條形碼、二維碼等。 Arbitrary Chinese and English, figures and graphics, barcode, two-dimensional code, etc. | |
| 外形尺寸Shape size | 流水線式。Line type. | |
| 流水線Assembly line | 標配1.2米，可定制 standard configuration 120 cm, Customizable | |
| 編程方式Programming mode | 打標軟件中編輯Edit in marking software | |
| 對位方式Counterposition | 視覺自動對位Visual automatic alignment | |
| 模板存儲量memory capacity | 硬盤無限量存儲Unlimitless storage of hard disk | |
| 操作系統operating system | Windows 7 | |
| 軟件系統software system | 點盛視覺系統軟件V1.0（激光打標專用） The visual system software V1.0 (special for laser marking) | |
| 控制方式control mode | PC控制、液晶顯示器 PC control, liquid crystal display | |
| Z軸移動范圍Z axis moving range | 100mm | |
| Z軸驅動Z axis drive | 步進電機Stepper motor | |
| 移動速度Moving speed | XY/Z：0.1-800/350 mm/Axis | |
| 電源Power | 220V±10%，50Hz±5%。 | |
| 整機功率Machine power; | ≤500W。 | |
| Temperature of Working environment | 0 ～40 °C | |
| 工作環境濕度 Humidity of working environment | 20～90% (無結露)(no dew) | |
