| 電源 | 380V 50HZ |
|---|---|
| 放卷直徑 | 600 |
| 復合層數 | 2 |
| 復合寬度 | 1300 |
| 機械速度 | 150 |
| 類型 | 臥式網帶復合機 |
| 收卷直徑 | 800 |
| 外形尺寸 | 12000*2400*2100 |
| 重量 | 6000 |
| 總功率 | 70 |
| 品牌 | 雙龍 |
| 加工定制 | 是 |
SLFH-A high speed roll dry laminating machine
Usage
This series of Laminating Machines are suitable for composition of all kinds of materials in packing industry such as plastic-plastic, paper-plastic and aluminum-plastic compositions.
Main Features
1. Machine Is Controlled By Three Vector Motor.
2.Both Unwind Of Machine Adopt Photoelectric Edge-correcting Device While The Material Feeding Is Controlled By Automatic Tension.
3.The Anilox Rollers Control The Amount Of Ink Scrapping By Scrapers. While The Rubber Roller Adopts Dual Air Cylinder .
4. 4-sect Heating In Drying Tunnel Is Controlled By Intelligent Temperature Controller, Qquipped With Inner Cycling Device. Save Power.
5.Laminating Hot Drum And Pressing Roller Device Are Heated Through The Hot Oil
6.The Rewinding Of Machine Adopts Torque Motor.
7.Gluing Pressing Roller And Laminating Pressing Roller Adopt Pneumatic Pressure And The Pressure Is Adjustable.

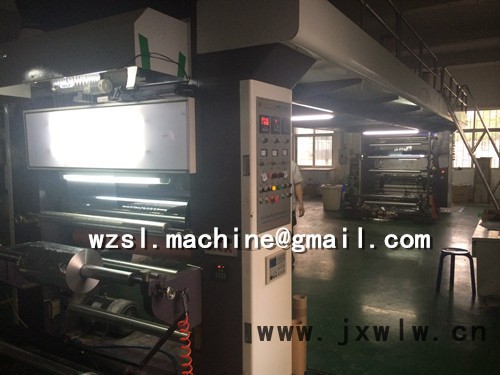

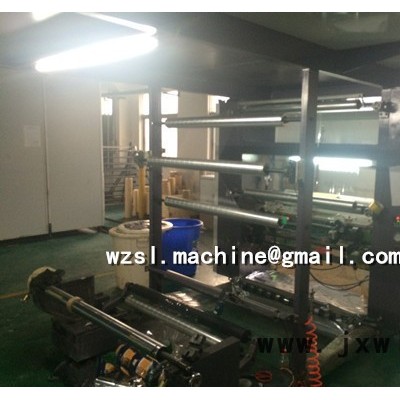

Machine Photo:
