通道數	4.0
顯示模式	屏幕顯示
最大輸入	1 MΩ 400 V max (DC + Peak AC ≤ 10 Khz) 50 Ω 5 VV
量程	1mV-10VV/div
電源電壓	90 - 264 VAC 45 HZ - 66 HzV
外形尺寸	291.7 mm x 399.4 mm x 131.31 mmmm
重量	5.86kg
品牌	力科LECROY
型號	HDO4022 HDO4024 HDO4054
加工定制	否

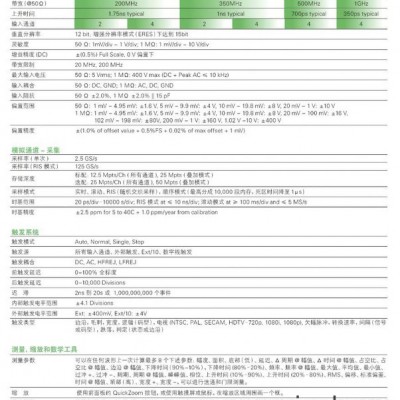

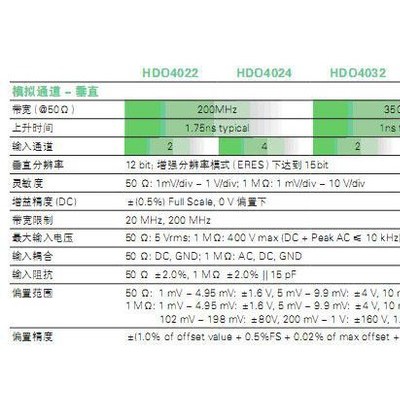

Vertical System
Bandwidth	500 MHz
Rise time	700 ps
Input Channels	4
Bandwidth Limiters	20 MHz, 200 MHz
Input Impedance	1 MΩ ±2.0% || 15 pF, 50 Ω ±2.0%
Input Coupling	AC, DC, GND
Maximum Input Voltage	1 MΩ: 400 V max (DC + Peak AC ≤ 10 Khz), 50 Ω: 5 VRMS
Channel-Channel Isolation	≥ 24 dB
Vertical Resolution	12-bits
Sensitivity	1 MΩ: 1 mV/div - 10 V/div 50 Ω: 1mV/div - 1 V/div
DC Gain Accuracy	±(0.5%) Full Scale, offset at 0 V
Offset Range	50Ω +/-1.6V: 1mV/div-4.95mV/div +/-4V: 5mV/div-9.9mV/div +/-8V: 10mV/div-19.8mV/div +/-10V: 20mV/div-1V/div 1MΩ +/-1.6V: 1mV/div-4.95mV/div +/-4V: 5mV/div-9.9mV/div +/-8V: 10mV/div-19.8mV/div +/-16V: 20mV/div-100mV/div +/-80V: 102mV/div-198mV/div +/-160V: 200mV/div-1V/div +/-400V: 1.02V/div-10V/div
Horizontal System
Time/Division Range	20 ps/div - 10000 s/div
Clock Accuracy	±2.5ppm for 5 to 40C + 1.0ppm/year from calibration
Trigger and Interpolator Jitter	3.5 ps (rms)
Acquisition System
Single-Shot Sample Rate/Ch	2.5 GS/s
Equivalent Sample Rate	125 GS/s
Memory	25 Mpts/Ch on 2 Ch 12.5 Mpts/Ch on 4 Ch
Acquisition Modes
Averaging	Up to 1,000,000
Peak Detect	na
Interpolation	Linear, Sin x/x
Enhanced Resolution	Up to 15 bits
Sequence Mode	Up to 10,000 segments
Triggering System
Modes	Normal, Auto, Single, Stop
Sources	Ch 1 - Ch 4, EXT, EXT/10, AC Line
Coupling Mode	AC, DC, LF Rej, HF Rej
Pre-trigger Delay	0-100% of full scale
Post-trigger Delay	0-10,000 Divisions
Hold-off by Time or Events	2ns up to 20s
Internal Trigger Range	±4.1 Divisions
Trigger Sensitivity	0.9 division: 10 MHz 1.0 divisions: 200 MHz 1.5 divisions: 250 MHz 2.0 divisions: 500 MHz
External Trigger Sensitivity	0.9 division: 10 MHz 1.0 divisions: 200 MHz 1.5 divisions: 250 MHz 2.0 divisions: 500 MHz
External Trigger Input Range	Ext: ±0.4 V, EXT/10: ±4.0 V
Display
Type	Color Touch Screen 12.1" TFT-LCD
Resolution	1280 x 800
Grid Styles	YT, XY
Trigger Types
Standard Triggers	Edge, Glitch, Width, Logic (Pattern), TV (NTSC, PAL, SECAM, HDTV), Runt, Slew Rate, Interval, Dropout, Qualified
Optional Advanced Triggers	na
Optional Serial Data Triggers	I2C, SPI, UART/RS-232, CAN, LIN, FlexRay, SENT, MIL-STD-1553, ARINC 429, Audio (I2S, LJ, RJ, TDM), USB, USB-HSIC, MIPI D-PHY, DigRF3G
Internal Storage
Waveform Storage	4 memory waveforms plus internal HDD
Setup Storage	6 setups
Math
Number of Math Traces	2
Standard Math Functions	Add, Subtract, Multiply, Divide, FFT, Absolute Value, Averaging (summed and continuous), Derivative, Envelope, Enhanced Resolution, Floor, Integral, Invert, Reciprocal, Rescale, Roof, Square, Square Root, Trend, Zoom
Optional Math Functions	na
Measurements
Number of Measurements Displayed	8
Measurement Parameters	Ampltidue, Area, base, Delay, Delta Period @ Level, Delta Time @ Level, Duty Cycle, Duty @ Level, Edge @ Level, Fall Time (90% - 10%), Fall Time (80% - 20%), Frequency, Frequency @ Level, Maximum, Mean, Minimum, Overshoot+, Overshoot-, Period, Peak-Peak, Period, Period @ Level, Phase, Rise Time (10% - 90%), Rise Time (20% - 80%), RMS, Skew, Standard Deviation, Time @ Level, Top, Width+, Width-
Probes
Probes	Qty. (4) ÷10 Passive Probes
Scale Factors	Automatic/Manual: ÷1, ÷10, ÷20, ÷100, ÷200, ÷1000, ÷2000, ÷10000 Variable: (÷1x10-6 - ÷10000)
Calibration Output	1 kHz square wave, 1.0 Vp-p, output to probe hook
Interface
GPIB Port (optional)	1 (optional)
USB (Device)	1
Ethernet Port	1
USB (Host)	6
Serial Port	0
Power Requirements
Voltage	90 - 264 VAC, 45 HZ - 66 Hz 90 - 132 VAC, 380 HZ - 420 Hz
Max. Power Consumption	330 VA
Environmental and Safety
Temperature (Operating)	5 °C to 40 °C
Temperature (Non-Operating)	-20 °C to 60 °C
Humidity (Operating)	80% RH, 31 °C 50% RH, 40 °C
Humidity (Non-Operating)	95% RH
Altitude (Operating)	3,048 m max at <=30C
Altitude (Non-Operating)	12,192 m
Physical Dimensions
Dimensions (HWD)	291.7 mm x 399.4 mm x 131.31 mm (11.48" x 15.72" x 5.17")
Weight	5.86 kg (12.9 lbs)
Warranty and Service
Warranty and Service	3-year warranty; calibration recommended annually. Optional service programs include extended warranty and calibration services.

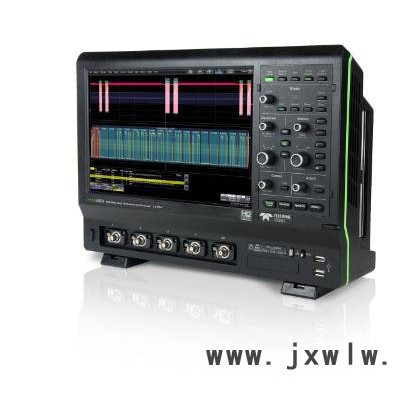

美國力科LECROY 12位高分辨率 HDO系列數字存儲示波器 HDO4022 HDO4024 HDO4032 HDO4034 HDO4054 HDO4014

長沙泰克示波器 長沙泰克電源 長沙力科示波器 長沙力科電源 長沙安捷倫示波器 長沙力科電源 長沙安捷倫示波器 長沙安捷倫電源 長沙福祿克萬用表 湖南福祿克萬用表  高壓探頭 電流探頭  湖南泰克示波器 湖南泰克電源  湖南力科示波器  湖南力科電源  湖南安捷倫示波器  湖南力科電源  湖南安捷倫示波器  湖南安捷倫電源  高壓探頭 電流探頭



一、產品簡介

HDO4000系列示波器應用Teledyne LeCroy的HD4096 技術，結合長存儲深度、緊湊輕巧的結構設計、12.1”多點觸摸顯示屏和強大的調試軟件工具，提供給用戶精確測量和快速調試的理想示波器。示波器內置的WaveScan波形搜索和查找工具、LabNotebook 報告生成工具、歷史模式等，幫助確認和隔離問題信號，為快速解決電路故障提供最佳解決方案



二、產品特點及詳細參數



●   12-bit ADCs 垂直分辨率，增強分辨率模式下達到15-bit ●   200MHz, 350MHz, 500MHz, 1GHz 帶寬分布 ●  長存儲-最高至50Mpts/通道 ●   12.1”觸摸顯示屏，1280×800分辨率 ●  多語言用戶界面 ●   WaveScan-高級搜索和查找工具 ●   LabNotebook 歸檔和報告生成工具 ●   歷史回放模式-波形回放和測量 ●  專業的頻譜分析軟件 ●  功率信號分析軟件包 ●  串行數據觸發和解碼 HD4096 高分辨率技術 HD4096 高分辨率技術包含高采樣率的ADCs，高信噪比的前置輸入放大器和低噪聲的系統架構。使用HD4096 技術的示波器可以精確采集和測量高達1GHz帶寬、高采樣率和比傳統8-bit示波器高達16倍的垂直分辨精度。 長存儲深度 最高至 50 Mpts 存儲深度的HDO4000系列高分辨率示波器可以高精度的捕獲大量的數據信息，以作為后期處理的依據。結合2.5GS/s和 50 Mpts存儲深度的架構令您在長時間采集和快速脈沖捕獲都游刃有余。 超 大 1 2 . 1”觸 摸 屏 幕 HDO4000上使用了12.1”超大的觸摸屏設計，使示波器上復雜的用戶操作界面已經成為了過去。同時示波器上的用戶界面專為觸摸屏幕和鼠標操作而設計，而使示波器的操作變得異常簡單，即使沒有使用過力科示波器的用戶也能夠輕松上手！因?yàn)椴徽撌峭ǖ?、時基、觸發還是自動化測試都可以一觸完成！ 更為靈巧的尺寸

您一定難以想象如此高性能的儀器還能夠擁有纖細的身材，擁有1 2 . 1”超 大 屏 幕 的 同 時只保 持了 5”的儀 器深 度 和 如 此便 攜的 體 積。同時，HDO4000 創新性的外觀工業設計能夠保持 4 種不同的儀器傾斜位置和視角，您可以隨心所欲將它擺在實驗室的任何位置。
