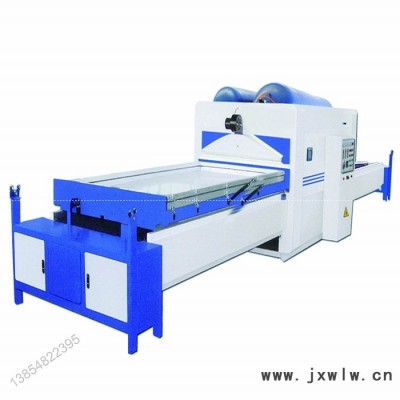

精達動力木工機械覆膜機 吸塑機TM2480A產品介紹：

外形尺寸 8950mm×1850mm×1350mm

Overall Size:  8950mm×1850mm×1350mm

工作臺尺寸2550mm×1300mm×50mm

Work Plat size: 2550mm×1300mm×50mm

整個加工高度80mm

MAX Process Height:80mm

總功率 20kw

Total Power :20kw

總重量2600kg

Total Weight:2600kg

適用范圍：

用于PVC貼覆板式家具、櫥柜、音箱、工藝門、裝飾墻裙及各種異型飾面。美觀大方，是家具裝飾行業的理想設備。

Suitable Range:

It used for pasting and covering furniture, cabinet,speaker, door,Decorative dado and various special finishes. Its main feature is fireproof, waterproof, acid and alkali, especially the indoor interior, no pollution, no smell, nice, it is the ideal equipment for furniture industry.

功能特點：

Functionand characteristic

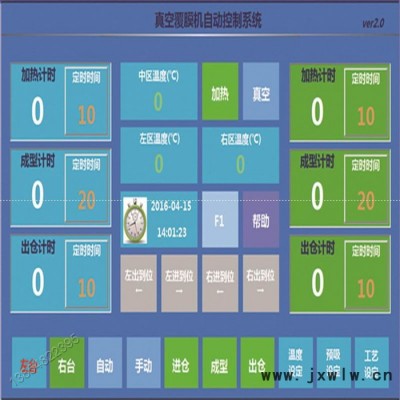

1． 自主開發的控制系統，采用工業觸摸屏與PLC控制，極大的增加了系統的穩定性，而且界面更加友好，操作更加直觀。

China's first self-developed control system, using industrial touch screen and PLC control, which greatly increases the stability of the system, and the interface more friendly, more intuitive.

2． 行走系統采用齒條加鏈輪傳動，克服了鋼絲繩或皮帶易打滑的缺點，免維護，噪音低，行走快速穩定。

Rack and chain are used in walking system,which surmount  the belt's slipped weakness，repair easily ,low noise and fast walking

3． 真空泵采用德國技術高品質直聯泵。

 Vacuum using German technology of high-quality direct-coupled pump, low noise, no pollution, long life.

4． 加熱系統采用石英管鋁排加熱，加熱更加迅速均勻。

The heating system uses aluminum row quartz tube heating, heating more quickly and evenly.

5． 設備機身采用標準鋼材焊接而成，13854822395力點經過認真計算，可無變形穩定性較高。

5. Device body of high quality steel welded together, the force point rigorously calculated to ensure high stability without deformation.

6． 另可增加豐富的個性化選裝配置，例如自動裁切刀、散熱風扇等，延展設備的使用功能和便利性。
